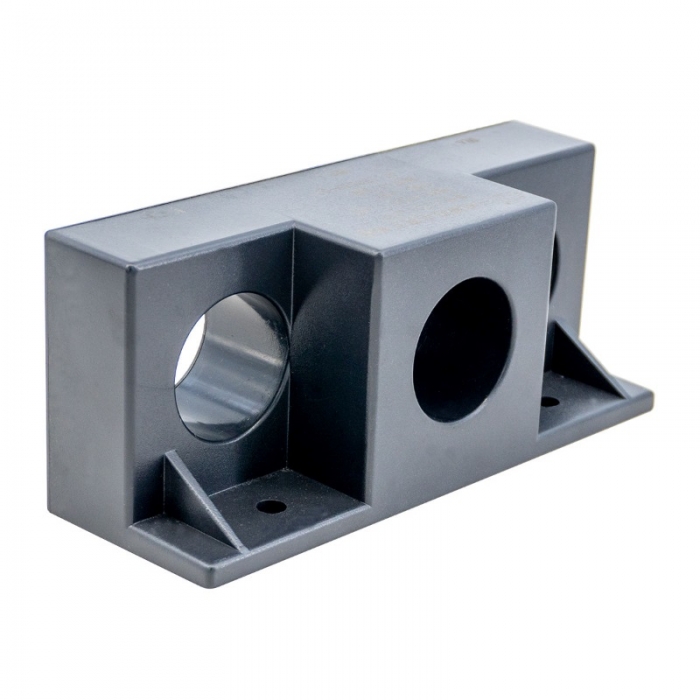

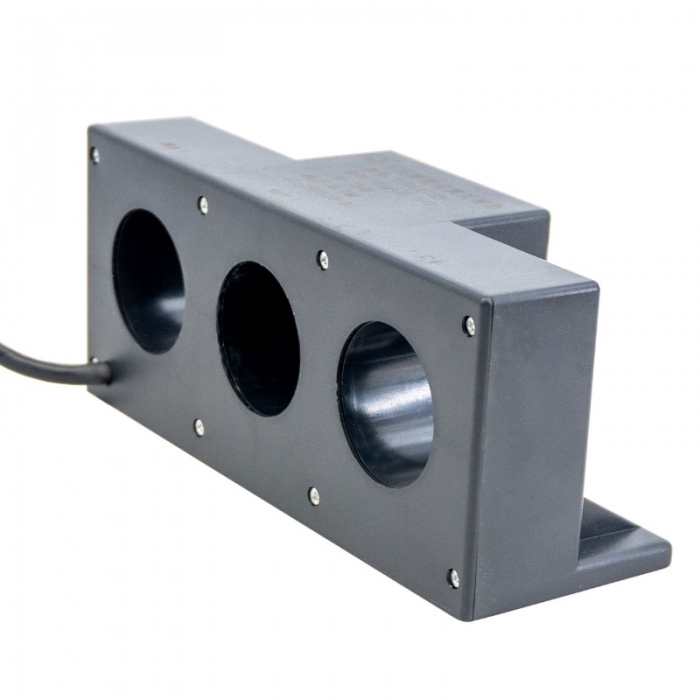

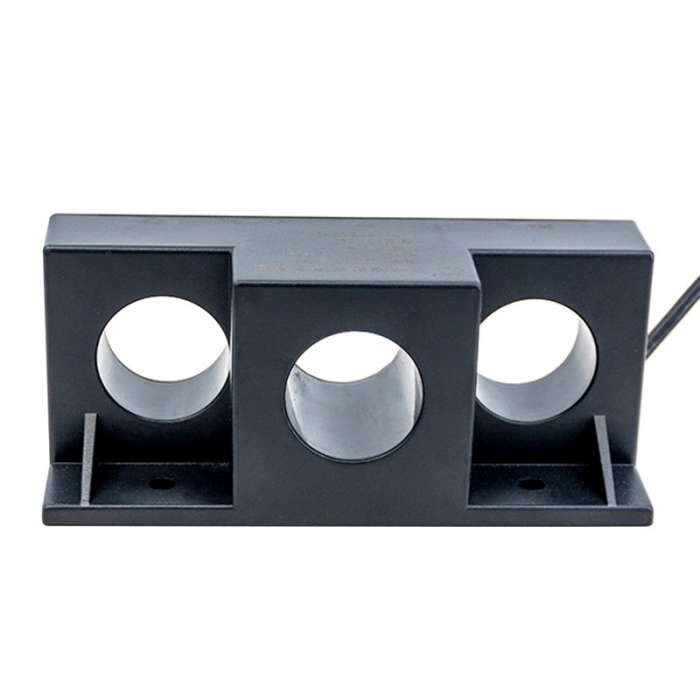

High-Voltage Protective Three-phase Current Transformer Superior Insulation Performance Safe and Reliable

Name:	High-Voltage Protective Three-phase Current Transformer Superior Insulation Performance Safe and Reliable

Product Description

Product description

This product is used for 360V,660V three-phase AC motor protection. It converts the AC current signal into a low-level AC voltage or current signal through a transformer and accurately transmits it to a microprocessor-based electronic circuit to provide

protection for the motor.

Product characteristics

Wide overload and excellent consistent ;

Different input current can be converted into a unified standard value ,which is convenient for signal acquisition;

The circuit is simple ,no external power supply is required and the operation is reliable

Various installation methods, optional PCB installation and bolt fixing methods.

Various shape structures are available .

Application

Widely used in AC motors ,air compressors, lighting ,heating ,ventilation and other devices in various places for current monitoring and protection ;power management ,automatic control systems for buildings
