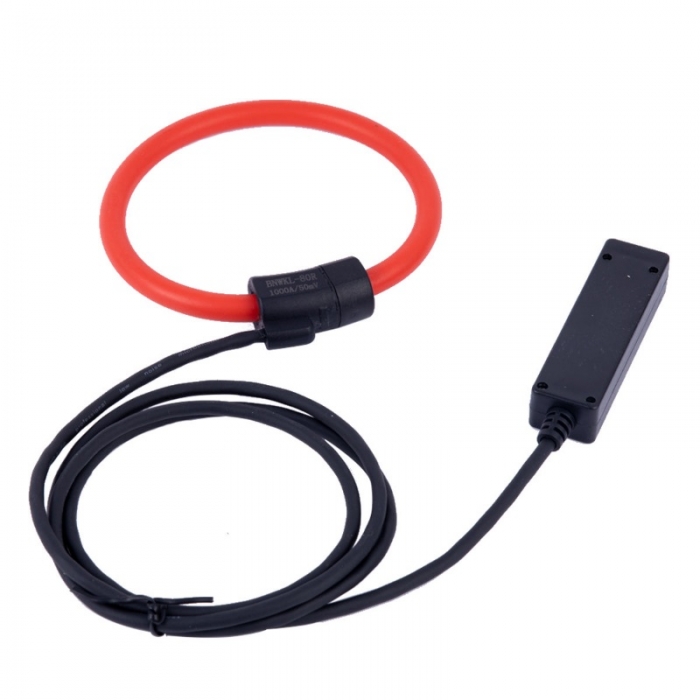

TR Split-type Flexible Rogowski Coil With Integrator Measurement Range 10A ~ 100kA Output Voltage 0 ~ 3V Current Transformer
| Name: | TR Split-type Flexible Rogowski Coil With Integrator Measurement Range 10A ~ 100kA Output Voltage 0 ~ 3V Current Transformer |
|---|---|
Product Description
The integrating circuit of the Split-type flexible Rogowski coil with an integrator adopts a fully differential input-output structure, which reduces external interference as well as non-signal interferences with common-mode characteristics such as device noise and device offset.
current in power lines. The output signal is the differential of the current against time, and through an integrator, the measured
current can be truly restored. The coil has excellent transient response ability, no hysteresis and magnetic and saturation
phenomenon, wide measurement range, high precision and wide frequency response range. The split-core structure, flexible silicone
rubber quilt and skeleton, can be used to measure the current of conductors with large size or irregular shape. The coil requires
very little installation space, light weight, simple and convenient installation, and no need to damage the conductor. It is
widely used in the measurement of large currents where the traditional CT measuring current cannot be used normally.
